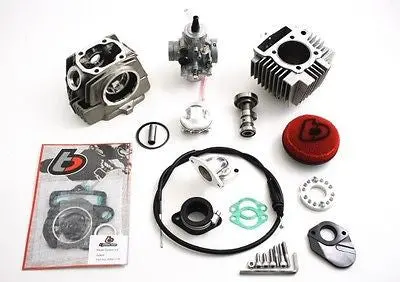

TB Parts 114cc High Compression Bore Kit – 86cc – 107cc Engines Application: TRX 90 LIFAN 86-107cc SIKK MX 110 XTREME 107 ICON
Key Features:
- Lightweight aluminum cylinder with steel liner
- Cast in mounts on cylinder for aftermarket skid plates
- Oversized cooling fins on cylinder for efficient heat dissipation
- High compression 54mm piston with rings, pin, & clips (replaces your low compression dished or flat top piston)
- Head gasket kit
Kit Includes: TBW0788 – Piston TBW0318 – Gasket TBW0721 – Cylinder
This will make a huge difference in performance over your stock setup and is a very quick and easy upgrade. For additional performance, add the 24mm or 26mm carb kit available in this section (both work great with this setup). This kit will work on all 86cc through 107 Chinese engines Except models with a 3 valve head. The cylinder stud spacing is different on SDG 107 (SDG SPEED MINI 107) Our Race Heads will work with your 2 valve head and will come with our huge Race Cam. Additionally, our Race Head uses Honda type cams so there are many cam options available for your particular type of riding, unlike the limited selection of cams available for the Chinese heads. Installation Note: It will save a lot of time and effort if the oil pump is installed while installing the bore kit (requires cylinder removal). See the Performance Info section for additional information on our performance parts. NOTE:
TRX90 will NOT need the high volume oil pump AND we now have the cylinder set up for drop in install with no case mods
