Description
A complete canvas set in good used condition.

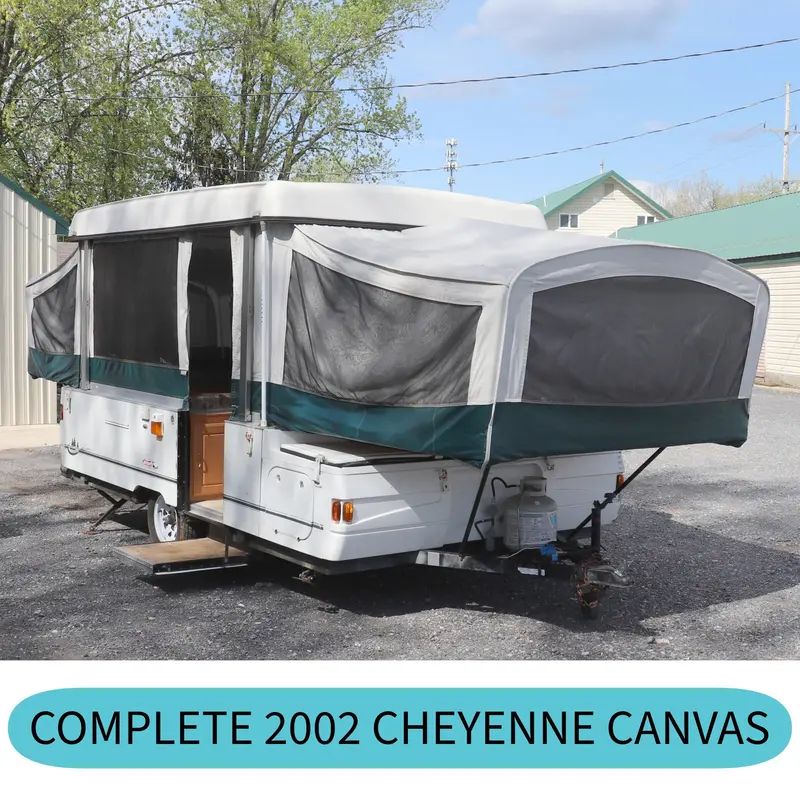

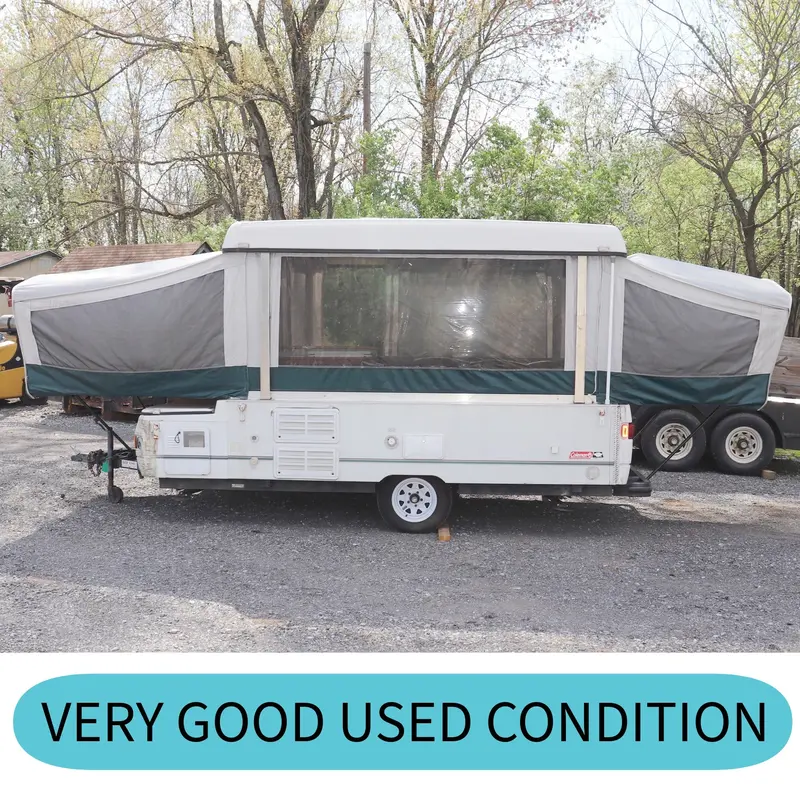

Removed from a 2002 Coleman Cheyenne, this canvas set is ready to be installed on your camper and enjoyed.
We could only find a few minor issues in this set. The door seal should have the top arrowhead seal replaced. The small window could use a small section of arrowhead seal at the top left. We are including at no charge three feet of new arrowhead seal in the set for these repairs.
Features :
- Direct Fit = 2002 Coleman Cheyenne Series 3696
- Box Sze = 10 Foot
- Bed Sizes = Front bed = King / Rear Bed = Double
- Fabric = White Canvas
- Vinyl = Green Lower, White Upper
Measurements :
- Front Boot / 4753E5861
- Height 49-1/2″
- Length 75″
- Width 79″
- Rear Boot / 4753E5871
- Height 49-1/2″
- Length 54″
- Width 79″
- Large Window / 4753B59191
- Height 47″
- Length 111-1/4”
- Small Window / 4753C5911
- Height 47″
- Length 75-1/2″
- Door Seal / 4753E5951
- Height 47″
- Length 15″
Measuring for your new canvas.
We are providing three critical measurements for the bed boots. The other sections are easy to measure, just requiring height and width.
The height at the boot where it zips to the next section, the length as measured across the bottom, and the width across the rear. We use the large rolled seam at the rear as a measuring point.
Part number 4910-3696
