GReddy Turbo Oil Return (drain) Flange Gasket
Select Size: Small or Large
Composite GReddy Turbo Oil Return Tube Flange Gasket – Small 16mm Dia.
For : TD025, TD04, TD04H, TD05, TD05H, TD06, & TD06H Turbochargers 2-bolt pattern (38mm) for M6xP1.0 bolts
Composite GReddy Turbo Oil Return Tube Flange Gasket – Large 21mm Dia.
For : TD06SH25G, TD07S, T67, T78, T88, & T88H Turbochargers 2-bolt pattern (51mm) for M10xP1.5 bolts
Oil Return Gaskets
| Small | 1 | 11900200 | Outlet – TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G |
| Large | 2 | 11900201 | Outlet – T67, TD06SH25G, TD07S, T78, T88(H) |
| IN | 11900221 | specialized turbo inlet flange for T67 for TD06SH25G |
Oil Return Flanges

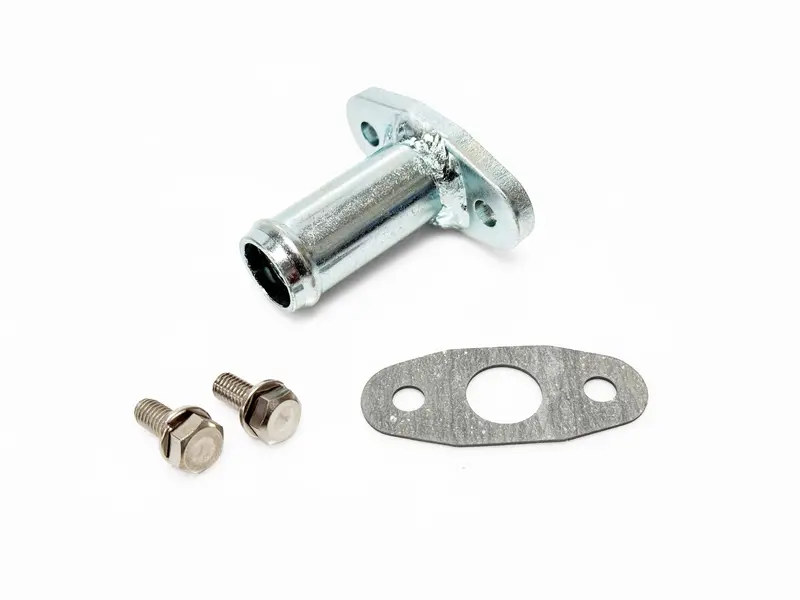

A flanged tube for mounting the oil return pipe to the GReddy turbine. Made from steel and zinc plated.
| Product name | specification | CODE | remarks |
| With 16φ flange (small) | Oil return flange small (L = 45 mm) | 11920090 | TD025, TD04(H), TD05(H), TD06S20G, TD06SH20G *1 |
| With 19φ flange (small) | Oil return flange small (L = 45 mm) | 11900880 | |
| With 16φ flange (large) | Large oil return flange (L = 45 mm) | 11920091 | T67, TD06SH25G, TD07S, T78, T88, T88H *1 |
| With 19φ flange (large) | Large oil return flange (L = 45 mm) | 11900881 |
